Top 6 Reasons To Get VAS5054A: This one is Green PCB not Blue PCB
1. With OKI Chip
2. Support UDS Protocol
4. Supported Car Models: V.W, A.UDI, S.KODA, S.EAT
5. Bluetooth Version
6. Bluetooth Connection Password: 082145725
The package will come with 1 set P.anasonic CF-19 second hand laptop.Our engineer will help you to install the software on the HDD.You can use it to diagnostic cars when you get the package.Please leave a message to tell me which language do you want for the software.
Note: VAS 5054A hardware support online coding, but our software does not support. Need get software from VW dealer for online coding function.
VAS 5054A ODIS V4.3.3 Computer Windows System Requirements:
Windows System Language: American English
System C:// have to be NTFS format
C:// need to have at least 40GB space for installing VAS 5054A
The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054A.
The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A via Bluetooth or USB.
Access Via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
Access Via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.
The Following Vehicle Bus Systems are Supported:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)

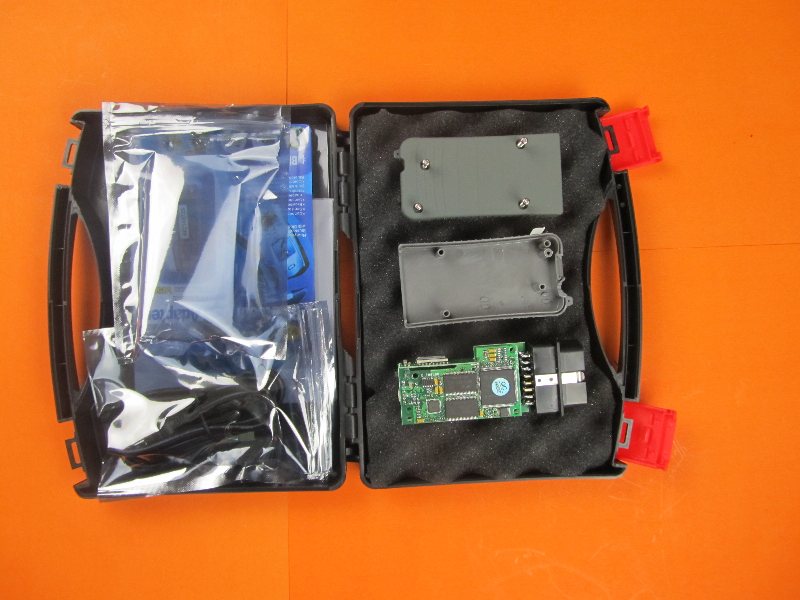

1pc x VAS 5054A Main Unit
1pc x USB Cable
1pc x USB Bluetooth Adapter
3pcs x CD Software
1pc x Carry Case
1pc x 320gb hdd
1pc x D630 Laptop(4GB Second Hand)
